Options

Eye-Level digital scale with digital height rod, LB & KG

Eye-Level digital scale with digital height rod, KG only

502KL with built-in Pelstar® wireless technology

502KG with built-in Pelstar® wireless technology

ScaleSurance® 2 year extended warranty for 500 series (not available in all countries)

ScaleSurance®

Optional power adapter for 502 series of scales

Power Adapter

Features & Benefits

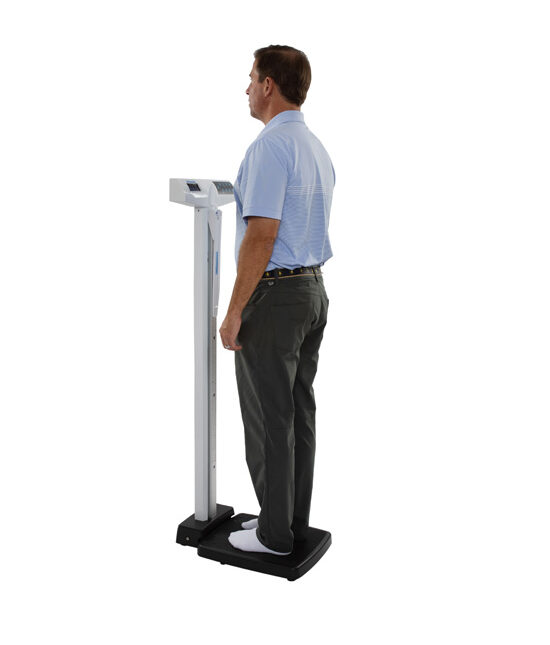

The newest member of the number-one-selling family of physician scales, the all-digital Health o meter® 502KL features a fully integrated digital height rod and EMR capabilities, providing the optimum in quality, reliability, and ease of use. The 502KL, created to cater to various healthcare settings like doctor’s offices, hospitals, clinics, and acute and long-term care facilities, showcases a market-leading built-in digital height rod, a spacious non-skid platform, and a reinforced base that ensures enhanced stability. The scale offers providers and patients an eye-level weight indicator, accommodating patients weighing up to 660 pounds.

 The market-leading height rod provides the most accurate height measurement in its class, with a graduation/resolution of 1mm/0.1” and a full measuring range of 11 ¾” – 79 ½” / 30cm – 202cm and a digital range of 3ft 11.2” – 6ft 7.5”/ 120 cm – 202 cm

Via optional Pelstar® wireless technology

Provide stability without affecting accuracy or weight reading.

Improves Patient Experience – Helps patients with poor or impaired balance maintain stability when standing on the platform.

Accommodates Patients of Any Height – Wrap-around design allows patients of any height to comfortably hold the handlebars.

Low platform height requires only a minimal step up, offering a patient a more comfortable and stable weighing experience

Option that allows users to permanently lock the scale in either LB or KG to improve safety

Functions
  • LB/KG conversion
  • LB/KG lock out
  • BMI
  • Zero
  • Tare
  • Pre-tare
  • Hold/Release
  • Auto Zero
  • Auto-Off
  • Reweigh
  • Recall
  • Parent/Child weighing function
  • Everlock® – permanent unit lock
Technical Specifications

660 lb / 300 kg

0.2 lb / 0.1 kg

Via optional Pelstar® wireless technology

1” / 25 mm, LCD display

6 AA batteries included, optional adapter (order# ADPT31)

13 ¾” x 16 ½” x 2 ⅜”
(349 mm x 419 mm x 60 mm)
Dent and rust proof platform

14 ⅜” x 21 ⅛” x 53 ⅝”
(359 mm x 537 mm x 1362 mm)

21 lb / 9 kg

3ft 11.2” – 6ft 7.5”/ 120 cm – 202 cm
Resolution: 1 mm / 0.1”

11 3/4”– 79 1/2” / 30 cm – 202 cm
Graduation: 1/16” / 1 mm

2 wheels, wide 8” wheelbase for ease of movement

2-year limited manufacturer warranty

Downloads & Resources

The newest member of the number-one-selling family of physician scales, the all-digital Health o meter® 502KL features a fully integrated digital height rod and EMR capabilities, providing the optimum in quality, reliability, and ease of use. The 502KL, created to cater to various healthcare settings like doctor’s offices, hospitals, clinics, and acute and long-term care facilities, showcases a market-leading built-in digital height rod, a spacious non-skid platform, and a reinforced base that ensures enhanced stability. The scale offers providers and patients an eye-level weight indicator, accommodating patients weighing up to 660 pounds.

 The market-leading height rod provides the most accurate height measurement in its class, with a graduation/resolution of 1mm/0.1” and a full measuring range of 11 ¾” – 79 ½” / 30cm – 202cm and a digital range of 3ft 11.2” – 6ft 7.5”/ 120 cm – 202 cm

Via optional Pelstar® wireless technology

Provide stability without affecting accuracy or weight reading.

Improves Patient Experience – Helps patients with poor or impaired balance maintain stability when standing on the platform.

Accommodates Patients of Any Height – Wrap-around design allows patients of any height to comfortably hold the handlebars.

Low platform height requires only a minimal step up, offering a patient a more comfortable and stable weighing experience

Option that allows users to permanently lock the scale in either LB or KG to improve safety

  • LB/KG conversion
  • LB/KG lock out
  • BMI
  • Zero
  • Tare
  • Pre-tare
  • Hold/Release
  • Auto Zero
  • Auto-Off
  • Reweigh
  • Recall
  • Parent/Child weighing function
  • Everlock® – permanent unit lock

660 lb / 300 kg

0.2 lb / 0.1 kg

Via optional Pelstar® wireless technology

1” / 25 mm, LCD display

6 AA batteries included, optional adapter (order# ADPT31)

13 ¾” x 16 ½” x 2 ⅜”
(349 mm x 419 mm x 60 mm)
Dent and rust proof platform

14 ⅜” x 21 ⅛” x 53 ⅝”
(359 mm x 537 mm x 1362 mm)

21 lb / 9 kg

3ft 11.2” – 6ft 7.5”/ 120 cm – 202 cm
Resolution: 1 mm / 0.1”

11 3/4”– 79 1/2” / 30 cm – 202 cm
Graduation: 1/16” / 1 mm

2 wheels, wide 8” wheelbase for ease of movement

2-year limited manufacturer warranty
