Eye-Level Digital Scale

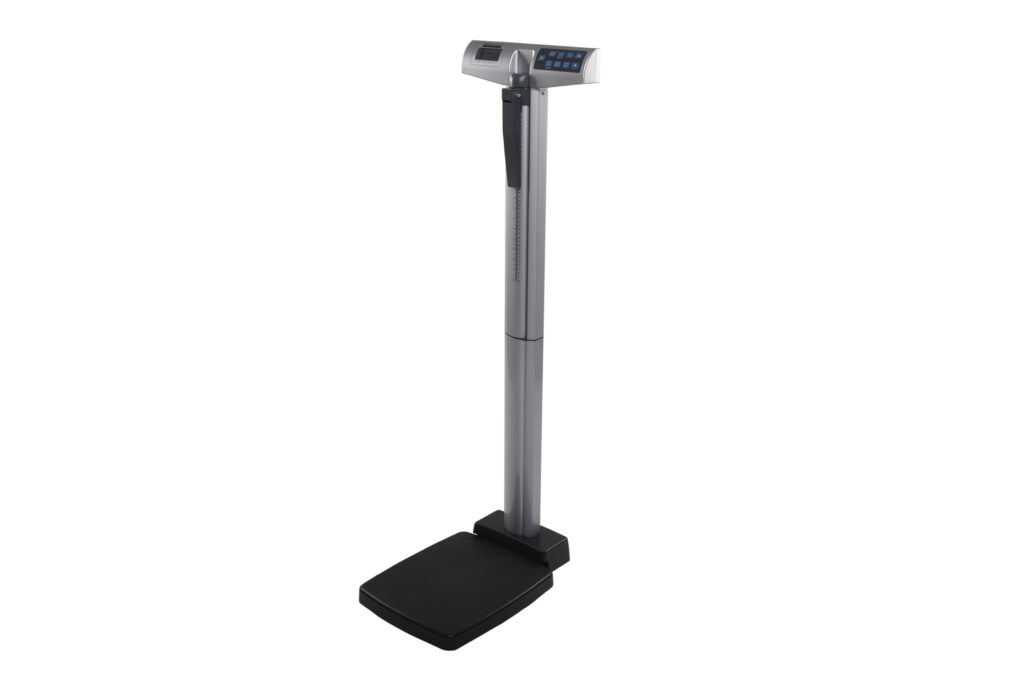

The number-one-selling physician scale in North America, the 500KL primary care scale, provides the optimum quality, reliability, and ease of use. The scale features a built-in height rod in the scale column, a large non-skid platform, a reinforced base for added stability, and wheels that enable portability. The scale gives providers and patients an eye-level weight indicator for patients up to 660 pounds.

Via optional Pelstar® wireless technology

Provide stability without affecting accuracy or weight reading.

Improves Patient Experience – Helps patients with poor or impaired balance maintain stability when standing on the platform.

Accommodates Patients of Any Height – Wrap-around design allows patients of any height to comfortably hold the handlebars.

The handlebar is easy to attach to any new scale using the pre-drilled mounting holes and can also be attached to any existing scale using the easy-to-use drill guides.

Low platform height requires only a minimal step up, offering a patient a more comfortable and stable weighing experience

Option that allows users to permanently lock the scale in either LB or KG to improve safety

• LB/KG conversion
• LB/KG lock out
• BMI
• Zero
• Tare
• Pre-tare
• Hold/Release
• Auto Zero
• Auto-Off
• Reweigh
• Recall
• Parent/Child weighing function
• Everlock® – permanent unit lock

660 lb / 300 kg

0.2 lb / 0.1 kg

Via optional Pelstar® wireless technology

1” / 25 mm, LCD display

6 AA batteries included, optional adapter (order# ADPT31)

13 ¾” x 16 ½” x 2 ⅜”
(349 mm x 419 mm x 60 mm)
Dent and rust proof platform

14 ⅜” x 21 ⅛” x 53 ⅝”
(359 mm x 537 mm x 1362 mm)

21 lb / 9 kg

30”-84 ¼” / 76 cm-214 cm
Graduation: ⅛” / 1 mm

2 wheels, wide 8” wheelbase for ease of movement

2-year limited manufacturer warranty
