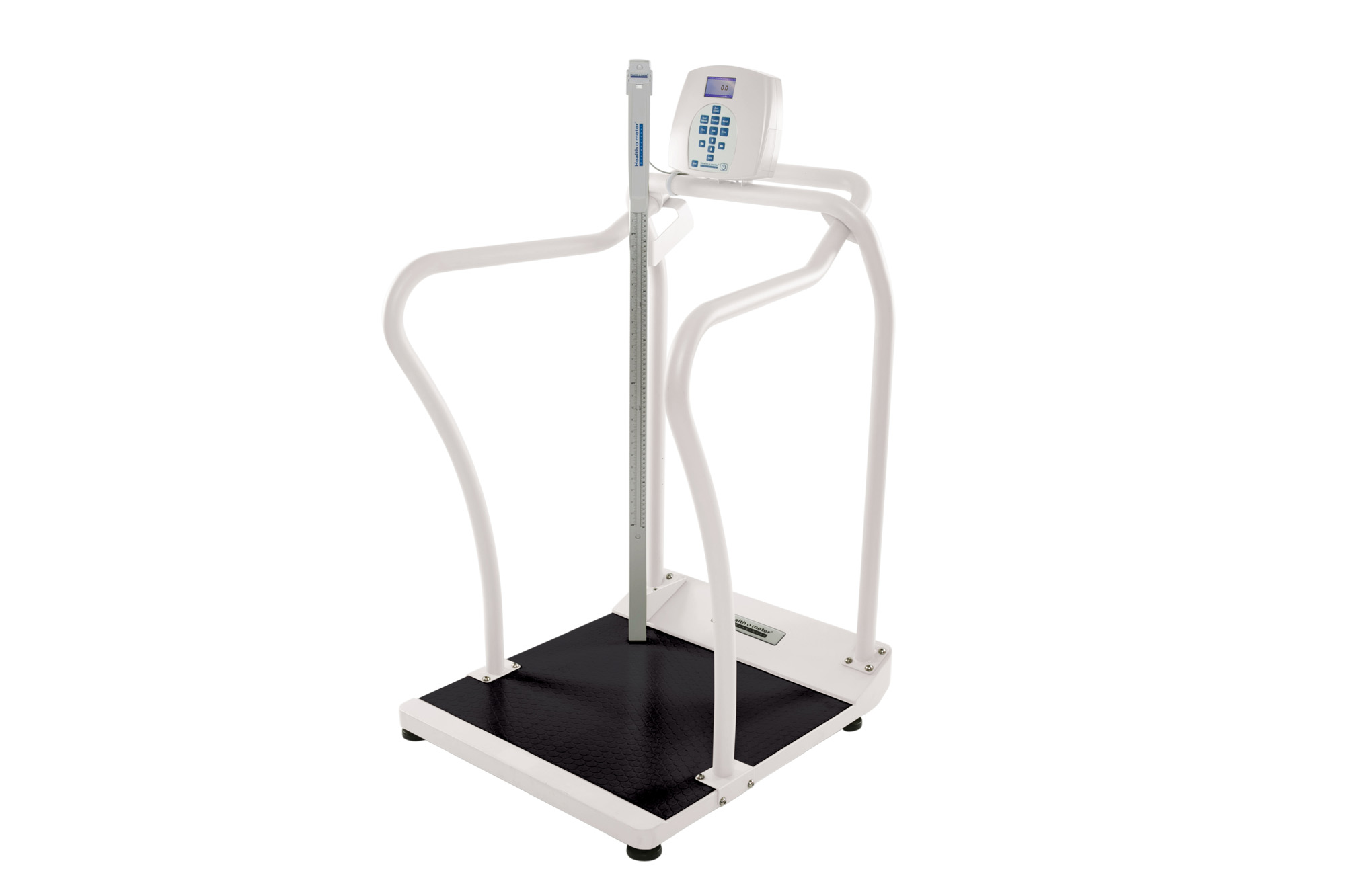

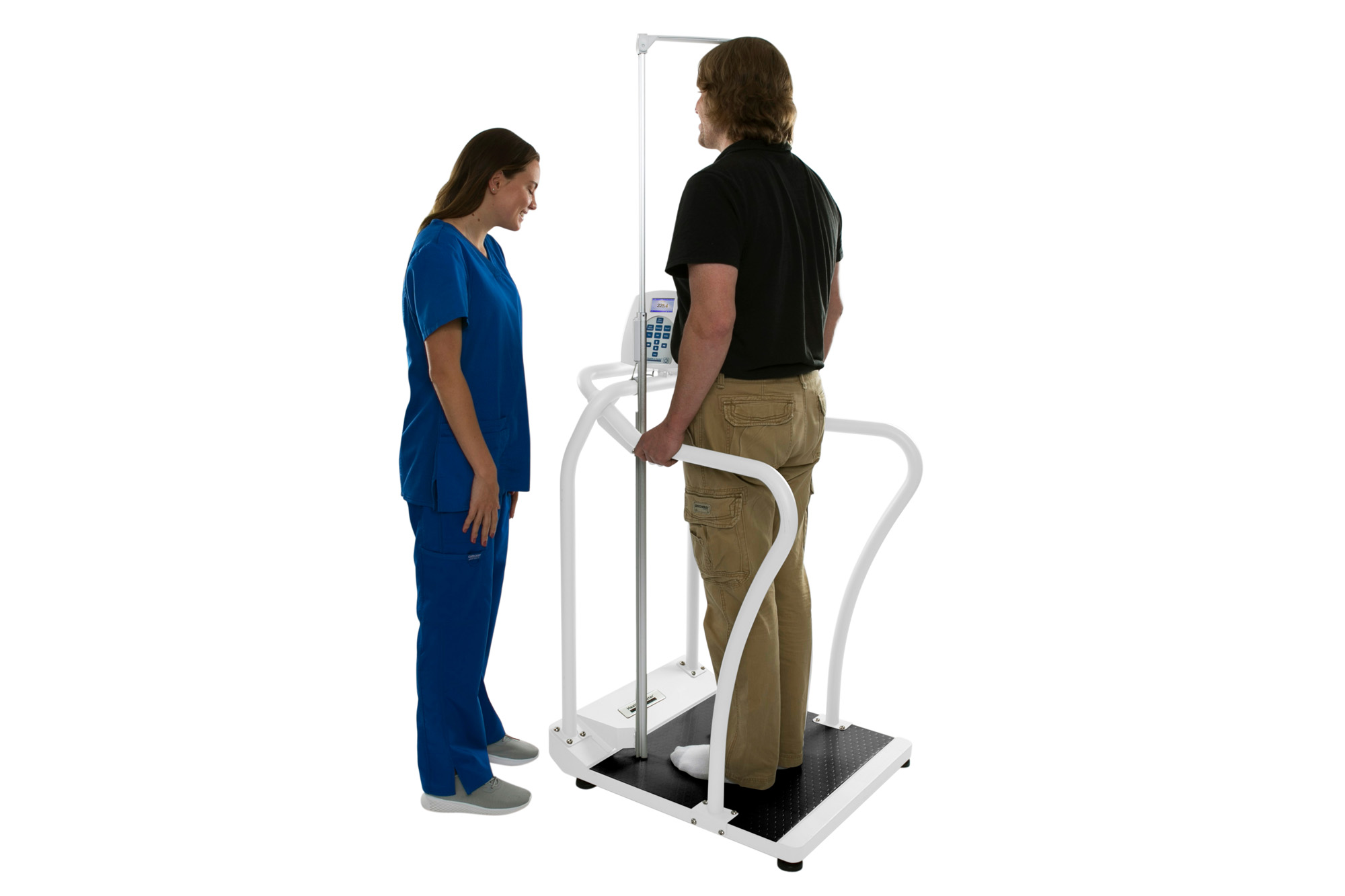

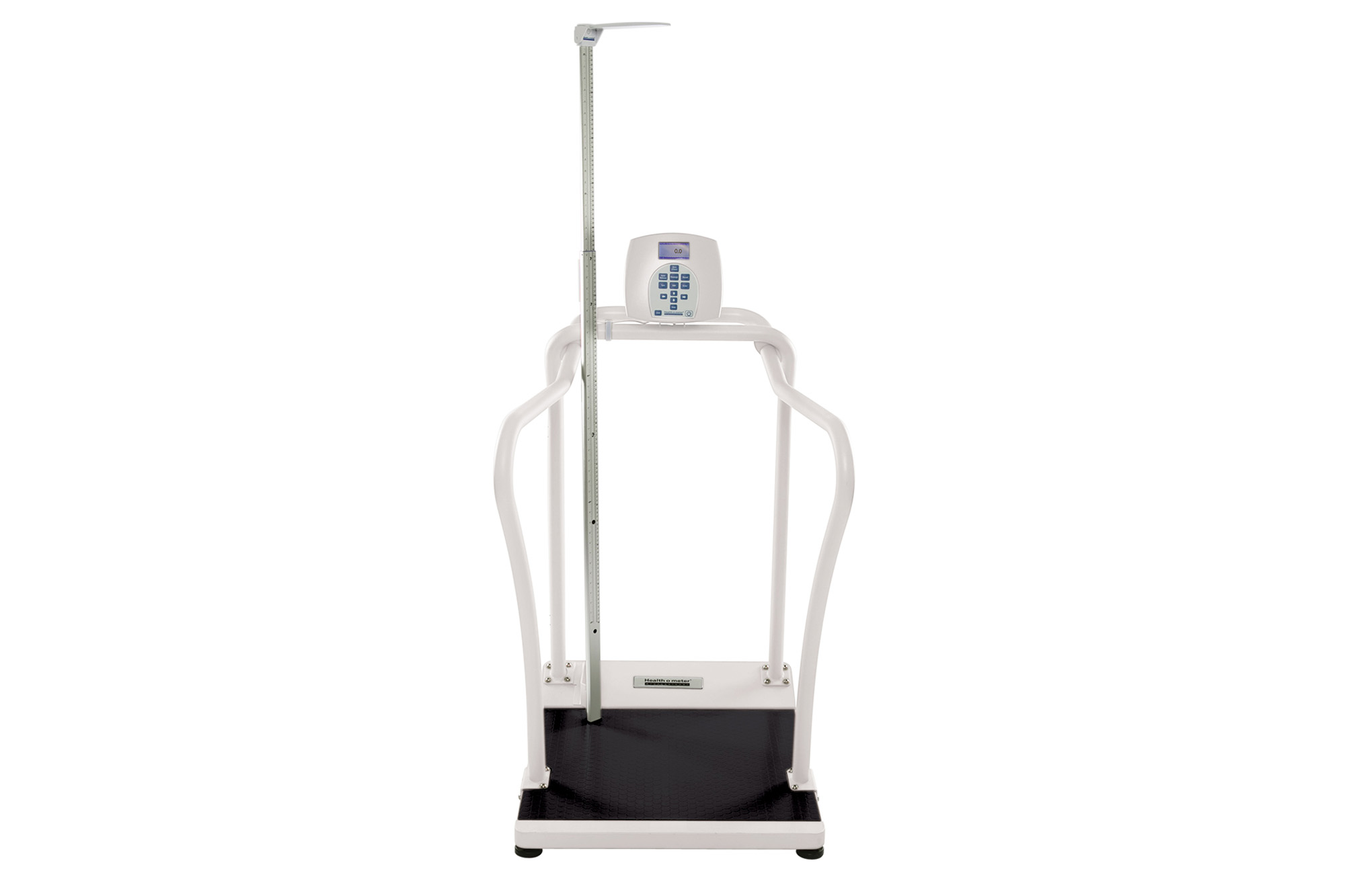

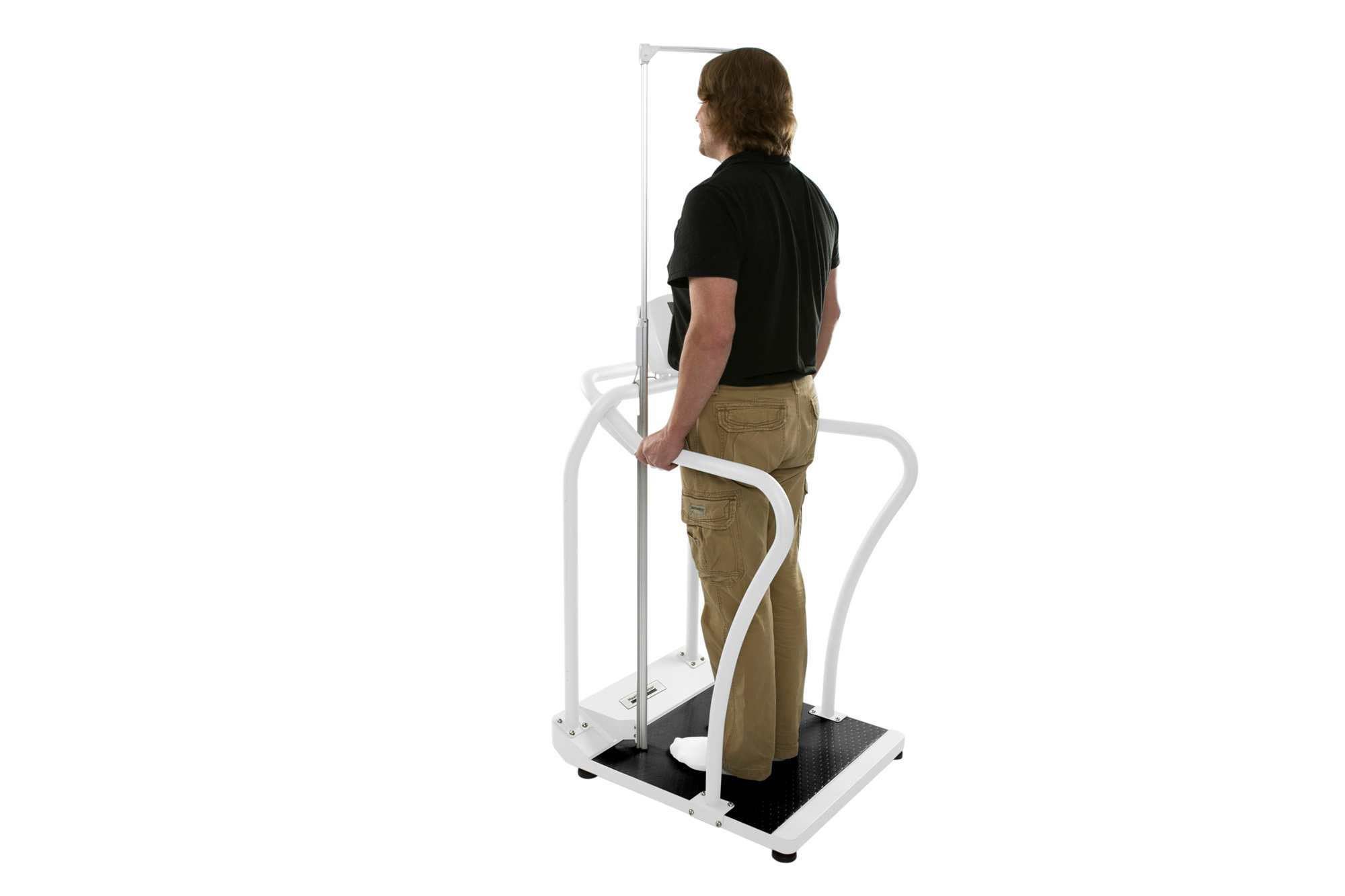

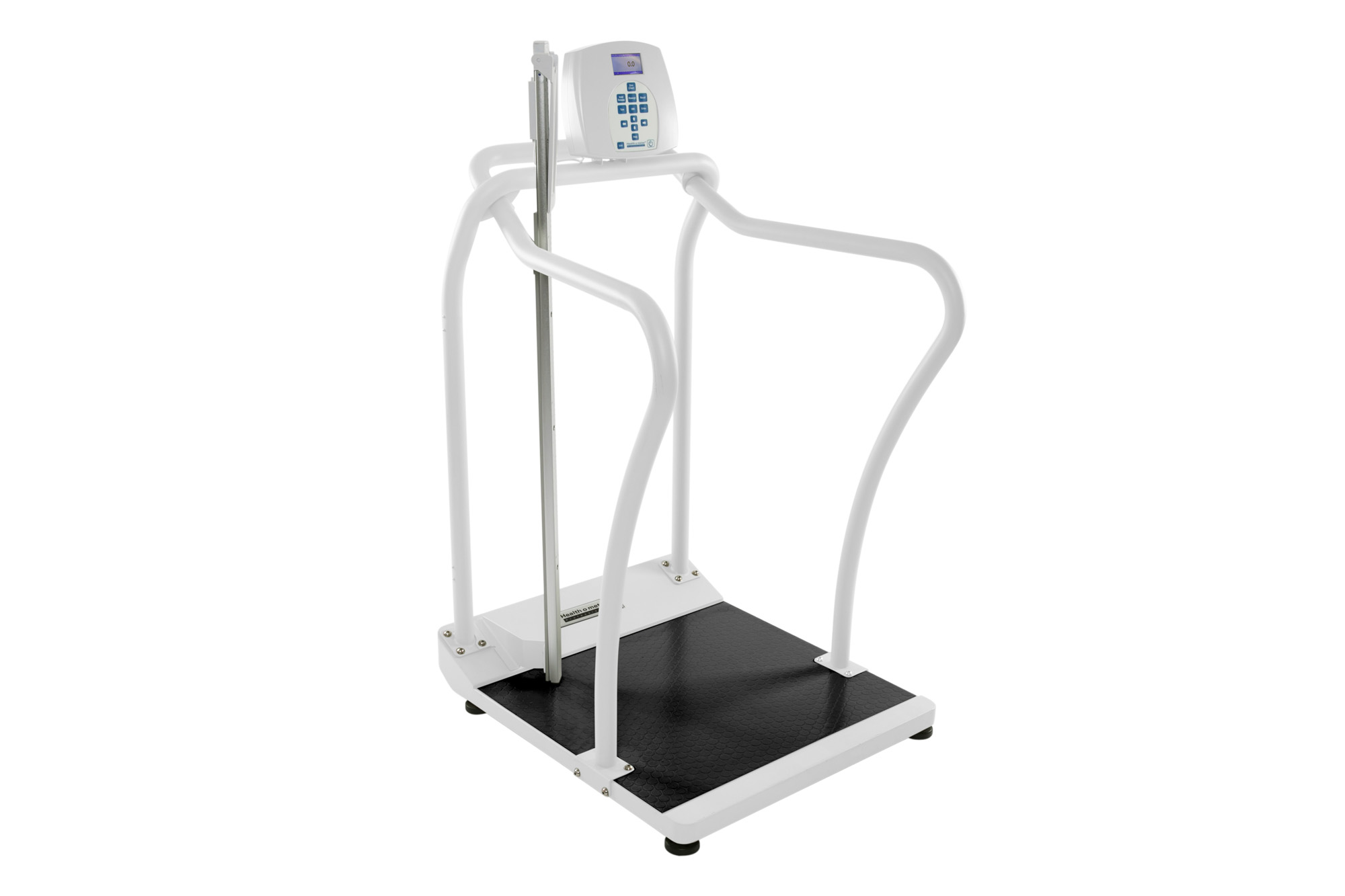

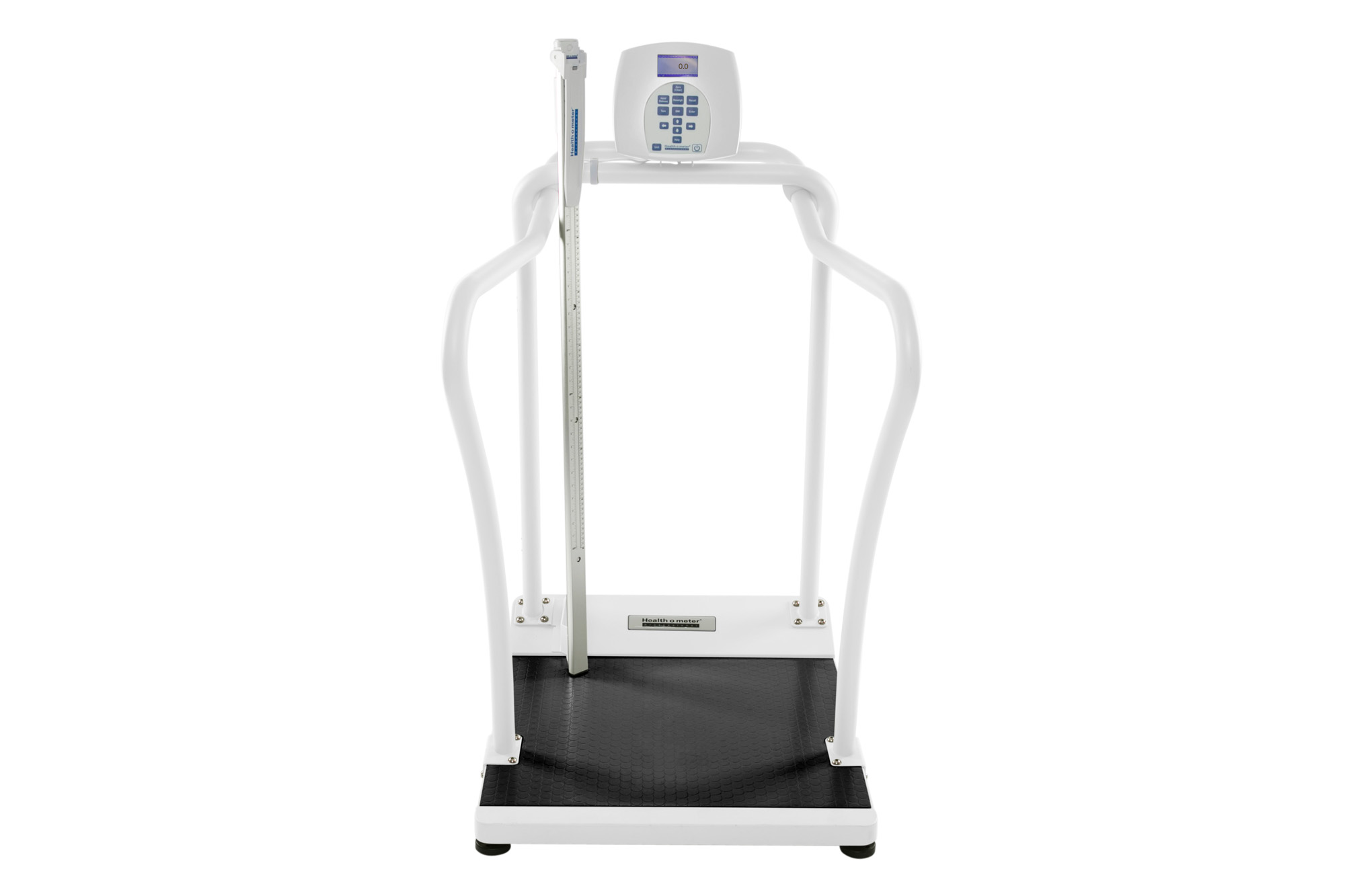

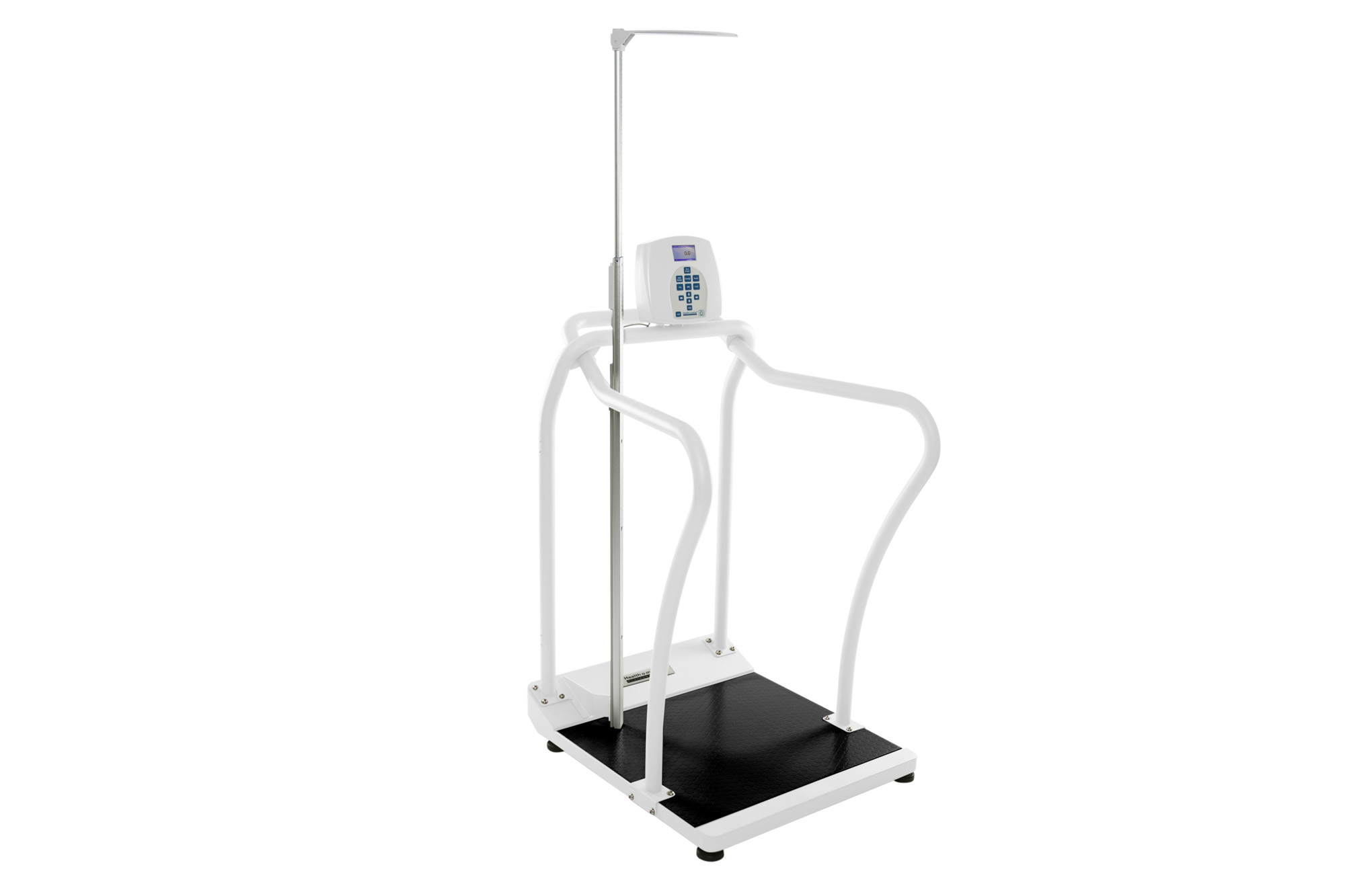

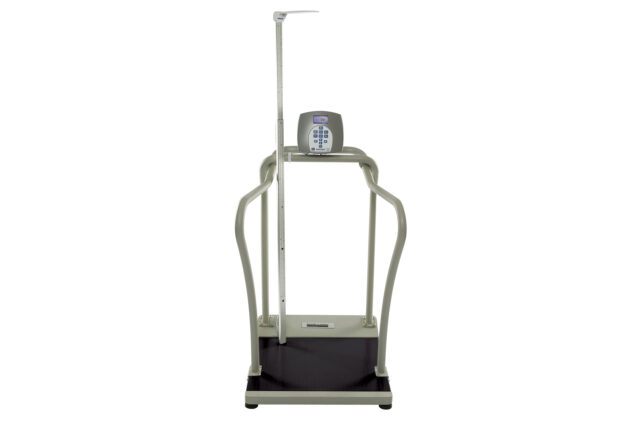

Digital Height Rod for the 2101 Series of Scales

The Health o meter® Professional digital 245EHR-2101 is an optional state of- the-art digital height rod for the 2101 series of scales. The market-leading height rod provides the most accurate height measurement in its class, with a graduation/resolution of 1mm/0.1” and a full measuring range of 11 ¾” – 79 ½” / 30cm – 202cm and a digital range of 3ft 11.2” – 6ft 7.5”/ 120 cm – 202 cm.

The new accessory uses solid-state technology, which provides a facility confidence that a patient’s height will be measured accurately, and workflow will not be interrupted. The built-in reset feature increases accuracy and reliability, and the folding headpiece limits the height rod’s profile, providing safety to patients and caregivers. The optional digital height rod has quick and easy to assemble brackets.

Proprietary technology eliminates mechanical sensors, reducing failures, increasing accuracy and reliability

Headpiece folds to limit height rod profile, provides safety to patients and caregivers

The most accurate digital height rod in its class with the graduation of 1mm / 0.1

Digital measurements on display can be verified on height rod markings

Bottom of height rod at zero level, ensuring accurate measurement every time

3ft 11.2” – 6ft 7.5” / 120 cm - 202 cm

1 mm / 0.1”

11 ¾” – 79 ½” / 30cm – 202cm

1mm / 1/16 inch

31” x 27” x 82 ½”
(787 mm x 686 mm x 2096 mm)

31” x 27” x 50”
(787 mm x 686 mm x 1270 mm)

70 lb / 30 kg

2-year limited manufacturer warranty

2101KL
2101KG
2101KL-BT
2101KG-BT
*Compatible with 2101 series scales with the letter “E” or “U” in the serial number and firmware versions 02.08.00 or higher. For assistance, contact Customer Service at 800-815-6615.
