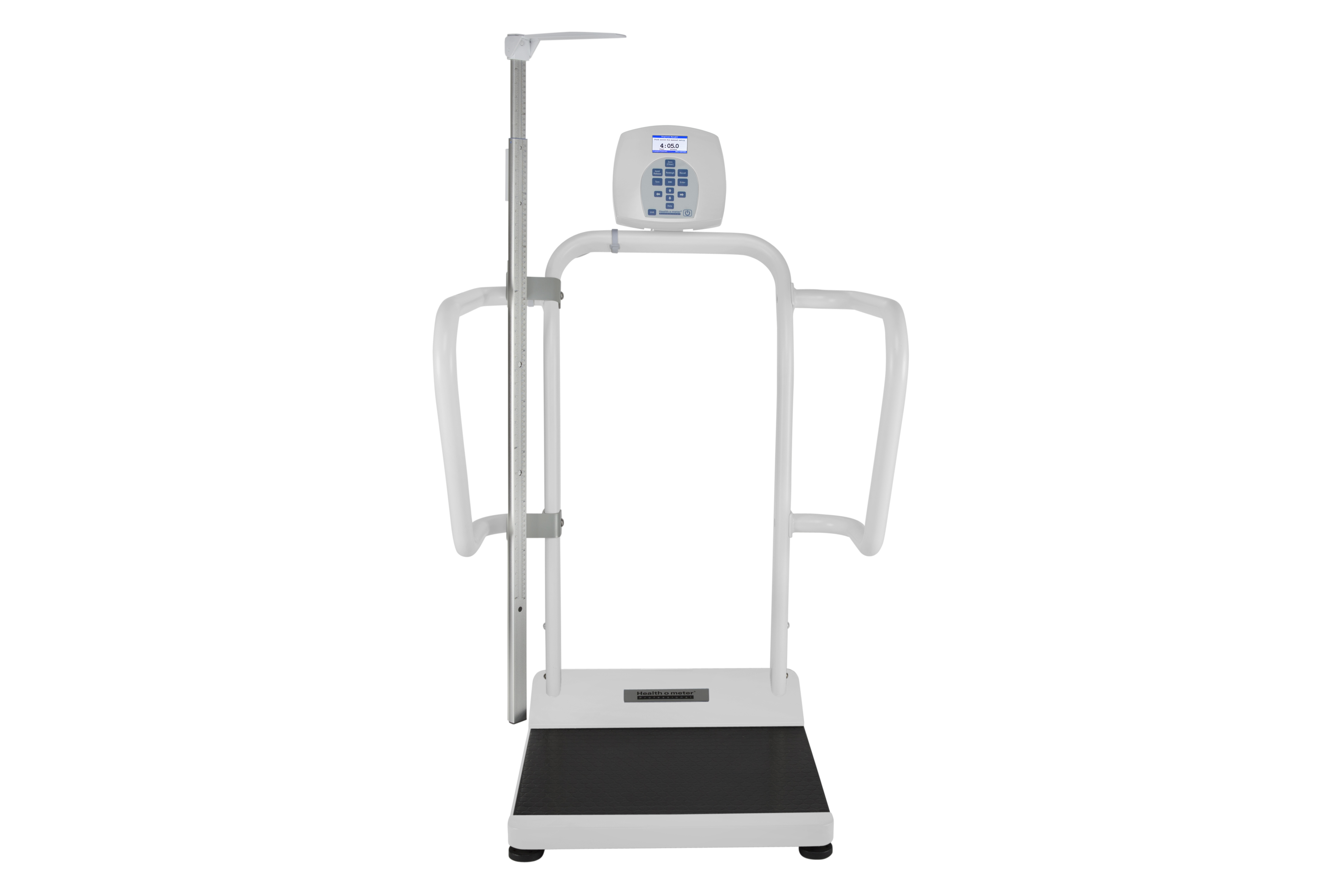

Digital Platform Scale with Extra Wide Handrails and Digital Height Rod

1100KL-EHR

cMETus
Options

Digital platform scale with extra-wide handrails and digital height rod, LB & KG

1100KL-EHR with Pelstar® wireless technology

Features & Benefits

The all-digital 1100KL-EHR combines the industry-leading bariatric scale that supports up to 1000 pounds and provides the optimum quality, reliability, and ease of use with a state-of-the-art digital height rod. The market-leading height rod provides the most accurate height measurement in its class, with a graduation/resolution of 1mm/0.1” and a full measuring range of 11 ¾” – 79 ½” / 30cm – 202cm. Digital measuring range of 3ft 11.2” – 6ft 7.5” / 120 cm – 202 cm. The extra-wide “live” handrails allow the patient to hold on for stability while the scale accurately calculates weight and height.

Antimicrobial keypad
EMR/vital signs monitor integration-ready
Extra-wide “live” handrails & low profile platform
High contrast color display with 180° swivel
Everlock® (patent pending) – option that allows users to permanently lock the scale in either LB or KG to improve safety

Broad height measuring range of 11 ¾” – 79 ½” / 30cm – 202cm provides readings for a wide range of patients
Digital Measuring Range: 3ft 11.2” – 6ft 7.5” / 120 cm – 202 cm
Industry-leading accuracy on the digital height rod with a graduation/resolution of 1mm / 0.1”
Built-in reset feature’s proprietary technology eliminates mechanical sensors, reducing failures, increasing accuracy and reliability
Headpiece folds to limit height rod profile, provides safety to patients and caregivers

Functions

LB/KG conversion
LB/KG lock out
BMI
Zero
Tare
Pre-tare
Hold/release
Reweigh
Recall
Auto zero
Auto off
Time/date
Variable auto off time
Audible/mute sound option
Parent/child weighing function
Everlock® – permanent weight lock

Technical Specifications

1000 lb / 454 kg

0.2 lb / 0.1 kg

Via USB, optional Pelstar®wireless technology

1 ½” / 38 mm High-Contrast Color TFT-LCD Screen

100-240V adapter (ADPT30) included, 6 D batteries not included

3ft 11.2” – 6ft 7.5” / 120 cm - 202 cm, Resolution: 1 mm / 0.1”

11 ¾” – 79 ½” / 30cm – 202cm, Graduation: 1mm / 1/16 inch

22” x 15 ¾” x 2 ½”
(559 mm x 400 mm x 64 mm)

(height rod extended)
31 ¾” x 33 ½” x 82 ½”
(806 mm x 851 mm x 2096 mm

(height rod in home position)
31 ¾” x 33 ½” x 50 ¼”
(806 mm x 851 mm x 1276 mm)

58 lb / 26 kg

2 wheels for ease of movement

2-year limited manufacturer warranty

Downloads & Resources

The all-digital 1100KL-EHR combines the industry-leading bariatric scale that supports up to 1000 pounds and provides the optimum quality, reliability, and ease of use with a state-of-the-art digital height rod. The market-leading height rod provides the most accurate height measurement in its class, with a graduation/resolution of 1mm/0.1” and a full measuring range of 11 ¾” – 79 ½” / 30cm – 202cm. Digital measuring range of 3ft 11.2” – 6ft 7.5” / 120 cm – 202 cm. The extra-wide “live” handrails allow the patient to hold on for stability while the scale accurately calculates weight and height.

Antimicrobial keypad
EMR/vital signs monitor integration-ready
Extra-wide “live” handrails & low profile platform
High contrast color display with 180° swivel
Everlock® (patent pending) – option that allows users to permanently lock the scale in either LB or KG to improve safety

Broad height measuring range of 11 ¾” – 79 ½” / 30cm – 202cm provides readings for a wide range of patients
Digital Measuring Range: 3ft 11.2” – 6ft 7.5” / 120 cm – 202 cm
Industry-leading accuracy on the digital height rod with a graduation/resolution of 1mm / 0.1”
Built-in reset feature’s proprietary technology eliminates mechanical sensors, reducing failures, increasing accuracy and reliability
Headpiece folds to limit height rod profile, provides safety to patients and caregivers

LB/KG conversion
LB/KG lock out
BMI
Zero
Tare
Pre-tare
Hold/release
Reweigh
Recall
Auto zero
Auto off
Time/date
Variable auto off time
Audible/mute sound option
Parent/child weighing function
Everlock® – permanent weight lock

1000 lb / 454 kg

0.2 lb / 0.1 kg

Via USB, optional Pelstar®wireless technology

1 ½” / 38 mm High-Contrast Color TFT-LCD Screen

100-240V adapter (ADPT30) included, 6 D batteries not included

3ft 11.2” – 6ft 7.5” / 120 cm - 202 cm, Resolution: 1 mm / 0.1”

11 ¾” – 79 ½” / 30cm – 202cm, Graduation: 1mm / 1/16 inch

22” x 15 ¾” x 2 ½”
(559 mm x 400 mm x 64 mm)

(height rod extended)
31 ¾” x 33 ½” x 82 ½”
(806 mm x 851 mm x 2096 mm

(height rod in home position)
31 ¾” x 33 ½” x 50 ¼”
(806 mm x 851 mm x 1276 mm)

58 lb / 26 kg

2 wheels for ease of movement

2-year limited manufacturer warranty
